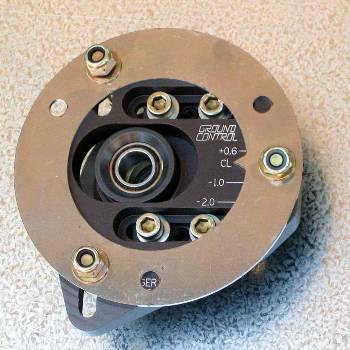

GC - E36, Front Strut Camber / Caster Plates (Coilover, Race Type)

$459.99

Purchase GC - E36, Front Strut Camber / Caster Plates (Coilover, Race Type)

Ground Control: exceptional quality; real world price

Ground Control can be seen on countless street and track cars at any given event; including some of our own VAC vehicles... Why is this? Because Ground Control products deliver excellent results. GC products like these camber plates are simple to use, quality pieces made to get results and last under real world conditions or the track or street.
The choice of countless enthusiasts, they stay in favor due to there excellent designs and honest quality commitment. Only very-high grade components, like Aurora bearings, go into GC products and each kit is made in the USA.

From Ground Control:
Legal for SCCA Improved Touring, Production, Street Prepared, and also legal for BMWCCA Prepared classes.

More camber adjustment than stock

Caster adjustment

Aircraft-grade bearings

Engraved with calibrated degrees for adjustment

Stainless steel reinforcement

Every component is anodized or plated

Including hardware & fasteners

The Ground Control camber plate design is exceptionally functional and adds extra travel vs. others, to avoid excessive bottoming out under compression stroke.
The GC exclusive stainless steel reinforcement prevents electrolysis between the steel fender and the aluminum camber plate.
Camber and caster are separately adjustable by sliding the mounts, without removing any components from the car. The priority of this design is to allow fast, repeatable alignment changes at the track.
The Ground Control camber plates feature two sets of bearings, a proprietary bearing, made to our specs by Aurora in the USA, which allows for articulation of the shock shaft. This spherical bearing is very understressed, as the Ground Control design does NOT support the weight of the car on the spherical bearing. Instead, the weight of the car is supported by a completely separate articulating needle bearing, which is also manufactured for Ground Control in the USA

VACs Tech NOTE:
The PSS9 and PSS10 systems use coilover OE Sized springs, and are not recommended with the GC camber plates.
We recommend the SPC/Eibach Camber plates below.

Purchase GC - E36, Front Strut Camber / Caster Plates (Coilover, Race Type)

SKU: GC-CCP-E36-R
Strut Type: Koni 14mm; Koni 16mm; Bilstein 14mm; Advance Desing 16mm; JRZ (RS version)
Spring Diameter: 2.25" Spring Diameter; 60mm Spring Diameter; 2.5" Spring Diameter; OEM Diameter (NOT AVALIBLE, use street plate)
Strut Shaft: Koni 14mm; Koni 16mm; Bilstein Standard 14mm; H&R type (Bilstine); JRZ (RS version)
Chassis Type: E36 (all)
