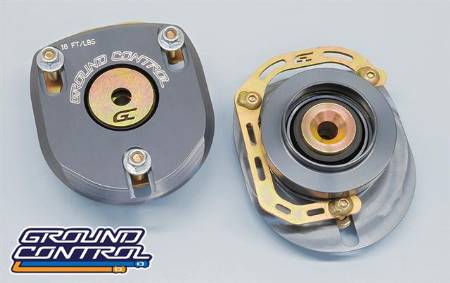

GC - E30, "Touring" Street Front Camber / Caster Plates (Springs or Coilover)

Purchase GC - E30, "Touring" Street Front Camber / Caster Plates (Springs or Coilover)

These NEW GC Camber / Caster plate are for use with full size OEM / replacement Sport or Race springs... OR coilovers. This lets you run your favorite suspension and have adjustable front alignment without having to switch to full coilovers, and offers a bit more cushion for the older E30 chassis than typical Mono-ball/ Spherical bearing camber plates.
Ground Control can be seen on many street and track cars at any given event, Why? because there products are simple, quality pieces made to get results and last under real world conditions!

These are the camber plates all E30 street enthusiast have dreamed of:


Many requests for a camber plate with a little less "race" and more "street" were heard! GC went to work designing something for the enthusiast who appreciates good handling, but spend most of their time on the street. An axial type bearing, like what is found on the E39 M5 BMW are utilized to give exemplary street manners, along with precise performance.

All OEM, Sports or Race springs from all manufactures should be compatible with these plates and most coilovers with 60mm or 2.5" springs can too (Please specify when you order).

Alignment is SO crucial to proper performance and these camber plates deliver while being totally street friendly! They also may lower your E30 by up to 12mm in the front Vs. OE strut mounts getting rid of the "reverse rake" many E30 have.

These E30 "Touring" Camber plates feature over 23mm of total camber adjustment (16mm negative/7.5mm positive), with the ability to make corrective caster changes to equalize side-to-side caster in the stock position.
Other features include urethane bushings for long life, less deflection, and a smooth, quiet ride. GC camber plates are also engraved with the Ground Control logo in an arch which can be used to locate the plate in the stock position for easy, repeatable, adjustment from street to track and back. All components are anodized or zinc plated for corrosion resistance and GC also offer their lifetime guaranty! (Bearings are wear items, and not included in this guarantee but are replaceable at any time)

• A clean sheet design for street cars, not an adapted spherical race plate.
• Waterproof, German-made, axial load steering bearings.
• Allows for up to 23.5mm total camber adjustment. (16mm negative - 7.5mm positive on top plate)
• Unique slot design allows for caster correction.
• Revolutionary caster adjustment can be locked or unlocked.
• Urethane center mounts reduce NVH, yet barely flex.
• All components plated or anodized for corrosion resistance.
• Zinc plated mounting bracket for ease of install and adjustment.

[Available for stock diameter, 60mm or 2.5 inch springs]

Purchase GC - E30, "Touring" Street Front Camber / Caster Plates (Springs or Coilover)

• SKU: GC-CCP-E30-Tour
• Strut Shaft: Koni 14mm; Koni 16mm; Bilstein; H&R (by Bilstein) (14mm size); AST; Tokico
• Spring Type: OE or Performance replacement springs; 2.5" Coilover Springs; 60mm Coilover Springs
• Chassis Type: E30 (all inc M3, [not IX])
