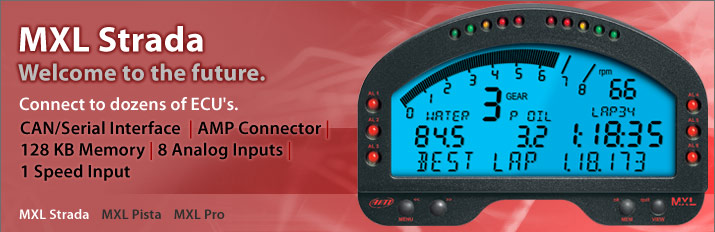

AiM Sports - MXL Strada

$1399.95

The MXL race data acquisition systems by AiM Sport are perfect for race cars, high-performance modified cars, street cars, street and racing motorcycles. Whether you need a digital gauge, full display, or racing data system, there is an MXL model for you!

The MXL Strada makes a statement on any street bike or performance street car -- anywhere you need style, accuracy, and reliability without the cost or complexity of a full data logging system.

The MXL Strada is a digital dash and gauge, that includes the harness to connect to 12V power and your supported ECU. The MXL Strada will display any available channels and high and low alarms can be configured. The MXL Strada has an lap time input for adding the optional lap time receiver and transmitter.

With standard features including a wide, fully configurable display, six configurable alarm LED's, and backlight, the MXL is a stylish, powerful display for performance vehicles.

Street Smarts

The MXL can be interfaced (via CAN or RS-232 serial) with a variety of vehicle ECU's (engine control units) including most European and Japanese late models, and aftermarket ECU's including MoTec, Pectel, AEM, KMS, DTA, MBE, Autronic, EFI, Seat, Bosch, Racetech, Carmo and more. Or add the optional full harness and deploy a powerful array of sensors on your vehicle, including pressure, temperature, throttle, steering, suspension, speed, Lambda, and more.

Science over Superstition

Connect sensors to the MXL and it samples and displays data from those sensors. For example, you can connect a wheel speed sensor and get continuous reads on your speed as you drive. AiM Sports uses sophisticated data acquisition technologies in the MXL to make this process fast, accurate, reliable, and cost-effective.

Unlock the Power

Connect the MXL to your vehicle's ECU and unleash the MXL's true power: sampling and displaying dozens of channels straight from the vehicle's nerve center, including specialized sensors built into the vehicle. This is often the quickest and easiest setup, needing only 1 cable connection to the ECU instead of multiple connections to analog sensors, yet it yields the most dramatic results. In addition - you can leverage your aftermarket ECU investment.

The MXL uses state of the art algorithms to sample, calculate and display RPM, lap time, gear position, speed, temperatures and more. The MXL Strada stores lap time data for on-board replay.

Read on to learn more about the MXL Strada's features.

Need even more power?

All of the features mentioned above come with the MXL Strada model. The MXL Pista model adds on 8 MB of memory for hours of data logging. With data logging, you can download the logged data to your PC for analysis. Compare different vehicle setups, tracks - even different drivers - and get the most from your practice sessions. Look back through detailed race day logs to identify winning performance techniques - or, learn from less than stellar performances. In addition, the MXL Pista features a built in G-sensor (accelerometer) for creating track maps.

For the high-end, engineering-minded driver or technician, the MXL Pro model has all of the Pista features and adds on 2 Deutsch connectors, a total of 4 speed inputs, a total of 16 MB of memory, a total of 12 analog inputs, and CAN protocol for expansion modules.

Purchase AiM Sports - MXL Strada

SKU: AIM-Strada
Chassis Type: Universal
